Bagnall 0-4-0ST No. 2469



Photos:

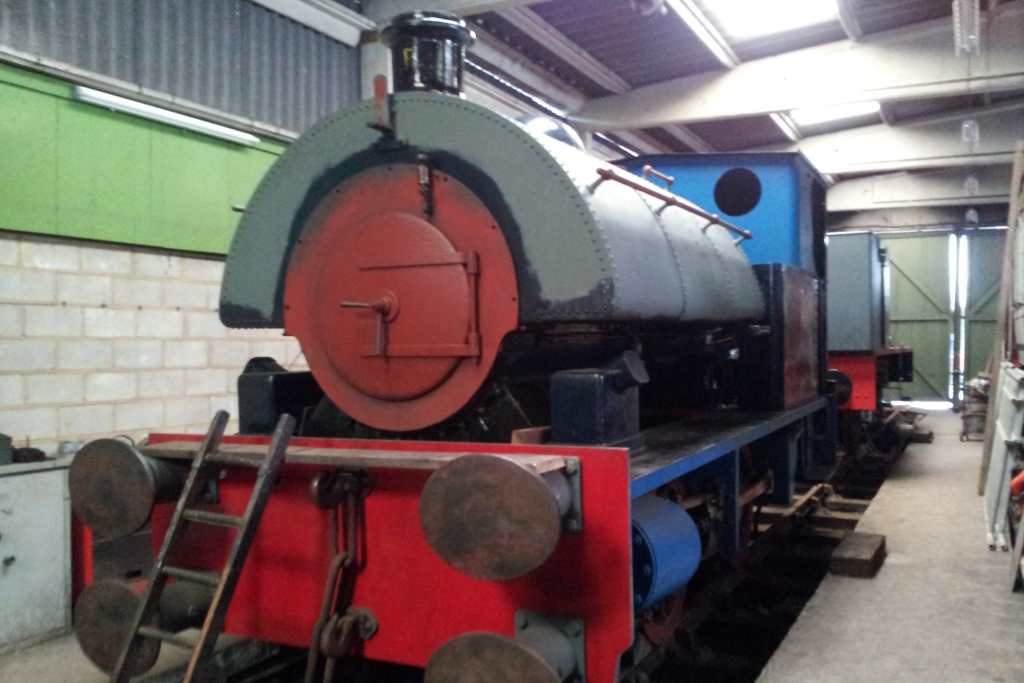

Colin Ashman - Scott in Quainton's Downyard Shed

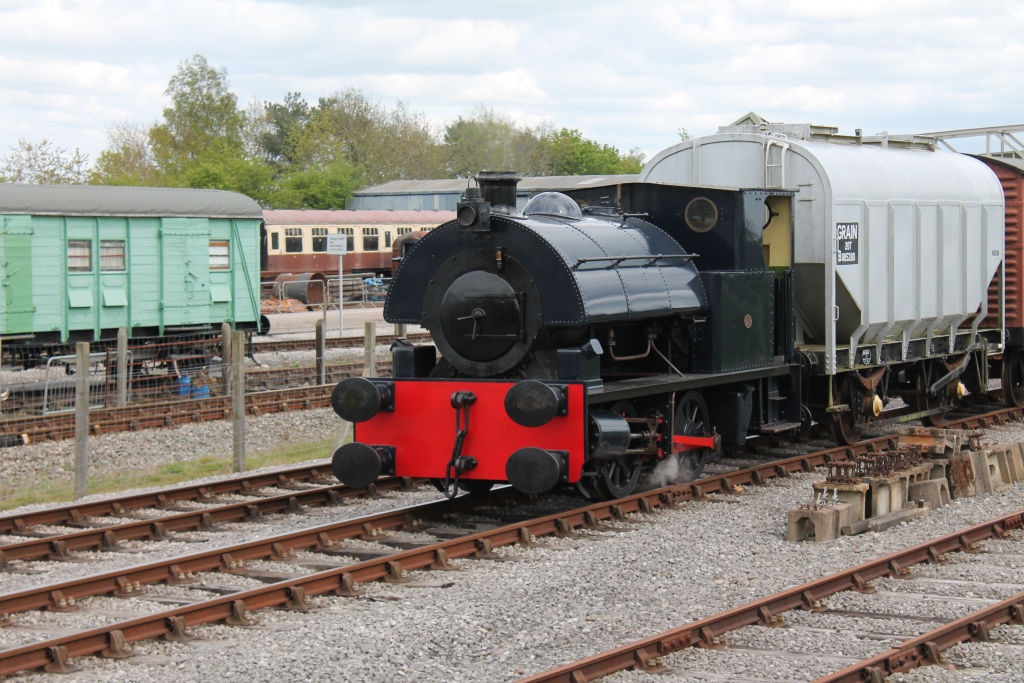

Tony Lyster - Scott undergoing in steam trials November 2013

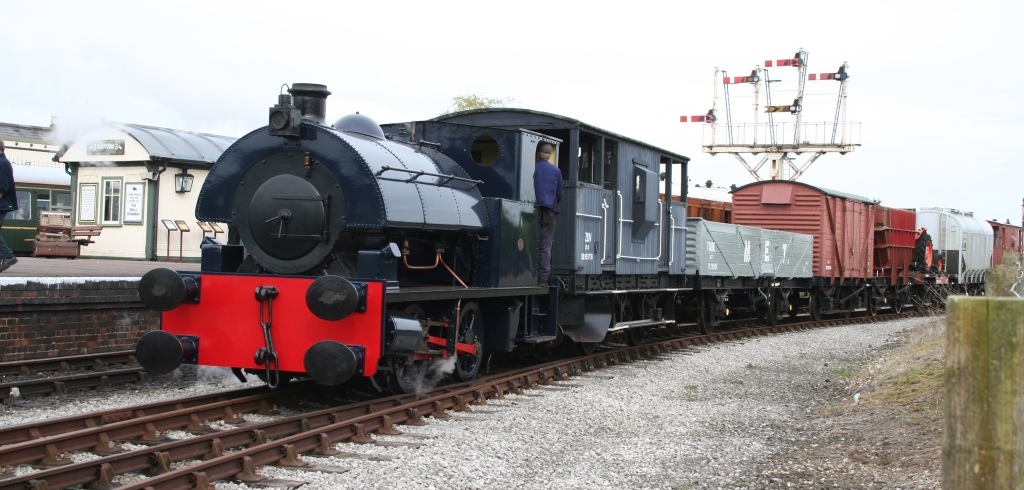

Sheila Lobley - Scott in down yard shed, 23 March 2013


In March 1932, Bagnalls turned out No. 2469 for the Frazer and Chalmers division of the General Electric Company in Erith, Kent. The locomotive was given the plant number V75, and a second set of buffers was fitted at low level. This was to suit the very low wagons employed by the company for the transport of heavy castings. In 1953 the engine underwent a heavy overhaul, during which it received a new firebox, but after this little work seems to have been done.

At the reorganisation which followed the take-over of Frazer and Chalmers by C. A. Parsons, V75 was declared redundant and offered for sale. A QRS member purchased the loco and after storage at Luton it arrived at Quainton in 17th April 1969.

During 2011 the boiler was sent to Locomotive Maintenance Services on the Great Central Railway where a heavy overhaul was completed, including a new tube plate, some replacement barrel sections and new stays fitted. The boiler has now been returned to Quainton and refitted to the locomotive during February 2013. In May the tank, cab and chimney were returned to the locomotive. In November 2013 No. 2469 started its first steam trials since it left industrial operation in the 1960s. When restoration is complete it will be named Scott.


Builder :- Bagnall Date Built :- 1932 Works No. :- 2469
Running No. :- V75 Name :- Scott Wheel Arrangement :- 0-4-0ST
Tractive Effort :- 9,658 lb Boiler Pressure :- 160 psi Cylinder Dimensions :- 12" x 18"
Weight :- 22t 15c Driving Wheel Dia. :- 3'0½" Owner :- QRS Member
Status :- Operational Location :- Down Yard Accession Number :- N/A
